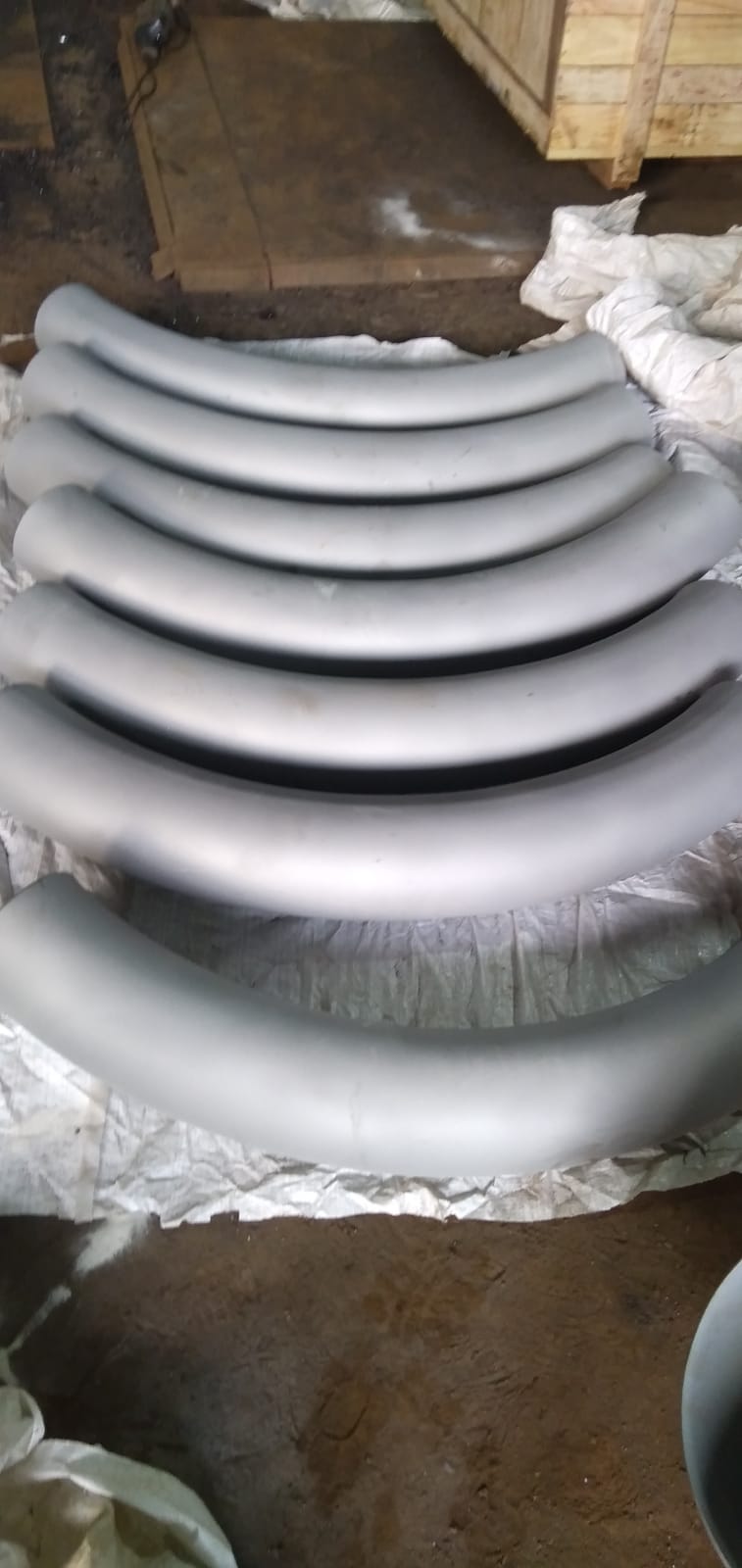

9D Bend Dimension

Key Engineering Benefits of 9D Bend Dimension

The 9D Bend Dimension is often used in systems where flow efficiency and structural reliability are equally important. Unlike short-radius bends, the longer arc of the 9D bend results in smoother directional change, which helps in maintaining laminar flow. This significantly reduces the potential for erosion, pressure loss, and vibration.

In Saudi Arabia and UAE, industries like petrochemical, power generation, and oil & gas regularly depend on this bend dimension due to its high efficiency in transporting fluids over long distances. Meanwhile, in India and Uzbekistan, water treatment facilities and boiler systems also benefit from the controlled flow environment it provides.

Additionally, engineers find that using a 9D bend minimizes pipe stress during thermal expansion and contraction. This feature is particularly crucial in colder regions like Kazakhstan, where pipelines are exposed to fluctuating temperatures and environmental stress.

Material Range and Technical Customization by Mesta Inc

Mesta Inc offers the 9D Bend Dimension in various materials including carbon steel, alloy steel, and stainless steel. All products comply with standards such as ASME B16.9, MSS-SP-75, and DIN. We manufacture bends using cold bending, induction bending, or hot forming techniques depending on material properties and application requirements.

Pipe sizes range from ½” NB to 48” NB, with wall thicknesses covering SCH 10 to SCH XXS. Depending on project needs, custom dimensions, angles, and surface treatments can also be provided. For projects in UAE and India, we often apply external coatings like 3LPE, FBE, or galvanizing to ensure long-term resistance against corrosion.

To maintain precision, our team uses advanced CNC and hydraulic press machines. Furthermore, our in-house testing facility ensures that every bend meets tight tolerances and passes dimensional inspections before dispatch.

Why Choose Mesta Inc for 9D Bend Dimension Applications

The 9D Bend Dimension offers multiple advantages in fluid transport and system longevity. Its long sweeping arc reduces fluid turbulence, noise, and mechanical wear. Due to these benefits, the bend is often specified in sensitive systems that involve high pressure or temperature variations.

For instance, industries in Uzbekistan and Kazakhstan rely on these bends for applications such as pipeline pigging, offshore installations, and superheated steam systems. In addition, its large radius allows for easier maintenance and cleaning of pipelines, particularly in systems transporting viscous or abrasive materials.

Our clients frequently mention how our 9D bends improve overall plant efficiency. With better flow dynamics, fewer repairs, and smoother operation, they see long-term value in using our fittings. Moreover, Mesta Inc offers prompt technical support, CAD drawings, and consultation to help clients integrate bends seamlessly into their systems.

Long-Term Supply Capability Across Global Markets

Thanks to strategic manufacturing facilities and warehousing, Mesta Inc ensures timely delivery to key markets including India, Saudi Arabia, UAE, Uzbekistan, and Kazakhstan. Whether it’s a scheduled delivery for a megaproject or an emergency replacement, our logistics team coordinates efficiently across borders.

We follow strict packaging standards using wooden crates, bubble wrap, and moisture-proof layers. As a result, bends reach customers in perfect condition. Furthermore, all products are shipped with complete documentation including MTCs, third-party inspection certificates (TUV, DNV, SGS), and compliance reports.

Additionally, our quality assurance process includes hydro testing, ultrasonic testing, and PMI testing, along with precise dimensional verification. These tests help us maintain the high-quality standards expected by engineering and procurement teams globally.

9D Bend Dimension – A Crucial Element in Industrial Piping Design

When designing pipelines for industries like oil refining, water treatment, or chemical processing, engineers often face the challenge of optimizing space and flow. The 9D Bend Dimension provides the ideal balance. Its long sweep makes it easier to align piping layouts without compromising efficiency or accessibility.

In India, large-scale infrastructure projects often incorporate 9D bends to handle high-velocity flows without pressure spikes. Similarly, offshore rigs in the UAE prefer these bends for subsea lines that require structural flexibility and reduced drag.

At Mesta Inc, we assist engineering teams during the design phase by providing 3D models, isometric drawings, and installation guides. This helps reduce field errors and speeds up the construction timeline. It also leads to improved safety and system performance over the lifecycle of the piping system.

Conclusion

The 9D Bend Dimension stands out as a premium solution for fluid systems where high performance and longevity are non-negotiable. From reducing pressure losses to extending the life of pipelines, this component is engineered for excellence.

Mesta Inc remains at the forefront of bend manufacturing with precision engineering, global supply reach, and industry-specific customization. Serving key markets like Kazakhstan, India, UAE, Saudi Arabia, and Uzbekistan, we are committed to delivering pipe fittings that go beyond expectations. Choose Mesta Inc, and secure performance, reliability, and international quality with every bend.
