5D Bend Dimension

What is a 5D Bend?

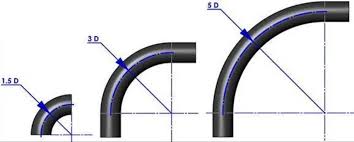

The term 5D bend refers to a pipe bend with a radius that is five times the nominal diameter (D) of the pipe. This extended radius provides a smoother curve compared to tighter bends such as 1D or 3D, reducing pressure loss and wear due to turbulence.

For example:

• A 5D bend on a 6-inch pipe means a bend radius of 30 inches.

• This type of bend creates a gentler curve, allowing for better fluid dynamics and less stress on the piping system.

This makes 5D bends particularly suitable for pipelines transporting gas, oil, water, chemicals, or steam — especially in high-speed or high-pressure scenarios.

Mesta Inc: Experts in 5D Bend Dimension Standards

At Mesta Inc, we understand that accuracy in bend dimensions is critical to the success of any industrial project. Our in-house engineering and manufacturing capabilities allow us to offer:

• Customized 5D bend dimensions based on pipe size, wall thickness, and material grade

• Precision forming that ensures dimensional accuracy and smooth surface finish

• Compliance with global standards like ASME B16.9, ASTM A234, EN, ISO, and DIN

• 100% quality-assured and tested products ready for mission-critical applications

We provide 5D bends in multiple materials, including:

• Carbon Steel – For robust, high-strength applications in oil and gas

• Stainless Steel – Ideal for corrosion-prone environments such as chemical plants and marine facilities

• Alloy Steel – Designed for high-temperature, high-pressure conditions

• Nickel Alloys, Inconel, Duplex, Super Duplex – For specialized applications where enhanced performance is required

Why Use a 5D Bend?

There are numerous advantages to choosing a 5D bend over shorter-radius alternatives:

1. Improved Flow Efficiency

With a longer radius, 5D bends create less turbulence in the flow, allowing for greater efficiency and reduced wear and tear inside the pipeline.

2. Reduced Pressure Drop

In applications involving high-speed or viscous fluids, 5D bends help maintain pressure, lowering the energy required for pumping.

3. Lower Stress Concentration

The gradual curvature of a 5D bend reduces mechanical stresses at the turning point, extending the lifespan of the pipeline system.

4. Enhanced Safety

Minimizing internal turbulence and pressure spikes reduces the risk of failure, especially in hazardous applications such as hydrocarbon pipelines.

Applications of 5D Bends from Mesta Inc

Our 5D bends are trusted across a variety of sectors for their performance, durability, and compliance with global technical standards.

• Oil & Gas Pipelines – For seamless transitions and flow control in both upstream and downstream operations

• Refineries & Petrochemical Plants – To accommodate tight layout spaces without compromising flow efficiency

• Power Plants – Steam, gas, and water lines benefit from reduced pressure losses

• Shipbuilding and Marine Engineering – Saltwater-resistant materials and optimized bends for critical piping networks

• Food & Beverage & Pharmaceuticals – Stainless steel 5D bends ensure hygienic fluid transfer

• Infrastructure Projects – Used in water treatment, HVAC systems, and fire safety lines

Understanding 5D Bend Dimension Calculation

Proper calculation of 5D bend dimensions is key to ensuring compatibility with your existing piping layout. Key considerations include:

• Outside Diameter (OD) of the pipe

• Bend Radius (5 × OD)

• Wall Thickness (SCH10, SCH40, SCH80, etc.)

• Center to Face Distance

• Angle of the Bend (commonly 45°, 90°, or 180°)

Our technical team at Mesta Inc offers complete support in determining the right 5D bend configuration for your specific project. Whether you need standard dimensions or customized bends for complex layouts, we deliver exact solutions on time and to specification.

Quality and Compliance at Every Step

At Mesta Inc, quality is not just a requirement — it’s a commitment. Every 5D bend undergoes:

• Dimensional Inspection

• Non-Destructive Testing (NDT)

• Hydrostatic Pressure Testing

• Ultrasonic and Radiographic Testing

• Visual and Surface Finish Checks

• Mill Test Certification and Material Traceability

Our facilities are ISO 9001:2015 certified, and our processes adhere strictly to national and international codes.

Global Delivery, Local Support

With a robust supply chain and distribution network, Mesta Inc delivers 5D bends to customers around the world. We ensure prompt dispatch and responsive support from our engineering and sales teams.

Whether your project is located in North America, the Middle East, Asia-Pacific, Europe, or Africa — Mesta Inc is ready to supply your 5D pipe bends with full documentation and technical assistance.

Partner with Mesta Inc

When precision matters, Mesta Inc is your ideal partner for industrial piping solutions. Our expertise in 5D bend dimension manufacturing ensures that every bend we supply contributes to the efficiency, safety, and longevity of your systems.
